If you are new to hyperspectral imaging and looking for a structured way in, this introduction is designed for you. Rather than trying to compress everything into a single article, it provides a learning path through the topic — covering what hyperspectral imaging is, how it works, what kinds of systems exist, what the data looks like, and how to evaluate the technology for a specific application. Each section points to deeper resources where you can continue when you are ready.
By the end, you should have a working overview of the field, a sense of how the major pieces fit together, and clear next steps for whichever aspect of hyperspectral imaging matters most for your situation.
Step 1: Understanding What Hyperspectral Imaging Is
The natural place to start is with what hyperspectral imaging actually is. In one sentence: it is a technology that captures a continuous light spectrum at every pixel in an image, instead of recording only a few broad color channels like a normal camera.
That single capability — measuring how light behaves at many narrow wavelengths simultaneously across a scene — is what makes hyperspectral imaging useful for tasks that ordinary imaging cannot support. Materials that look identical in regular photography often have distinct spectral signatures across the visible, near-infrared, and shortwave infrared regions. Hyperspectral systems measure those signatures, enabling identification, classification, and quantification based on optical properties rather than visual appearance.
For a complete foundational overview — including the formal definition, how the technology works, and where it came from — start with our dedicated article on what hyperspectral imaging is. It is the natural first read for newcomers to the field.
Step 2: Knowing Where Hyperspectral Sits Among Related Technologies
Hyperspectral imaging does not exist in isolation. It is one of several spectral imaging methods, each with its own strengths and trade-offs. Understanding where hyperspectral sits in this landscape is important for evaluating whether it is the right technology for a given problem.
The closest relative is multispectral imaging, which captures a small number of selected wavelength bands rather than many contiguous ones. Both methods belong to the broader family of spectral imaging, but they are optimized for different priorities — multispectral is simpler and often sufficient when the analyst knows in advance which bands matter; hyperspectral is more powerful when subtle spectral features need to be detected or when the analysis requires deep material characterization.
Our overview of hyperspectral vs multispectral imaging covers this comparison in detail. For a closer look at the broader concept of capturing spectral information per pixel, the spectral photo article frames the underlying idea in plain terms.
Step 3: Understanding the Hardware
Once the basic concept is in place, the next layer to understand is the hardware — the cameras, sensors, and supporting equipment that actually capture hyperspectral data.
At the heart of any system is the hyperspectral sensor, the detector array that converts light into measurable signal. Different sensor technologies suit different spectral ranges: scientific CMOS for visible and near-infrared, MCT or InGaAs for shortwave infrared, and specialized detectors for thermal regions. Our overview of hyperspectral sensors covers the detector layer in depth, including the trade-offs between sensor types and the parameters that determine real-world performance.
Wrapping the sensor is the hyperspectral camera — the integrated unit including the spectrometer, optics, and housing. Our overview of hyperspectral cameras and imagery covers the camera-level perspective. At the foundation of this camera, the imaging spectrometer is the precision optical instrument that disperses incoming light into its wavelength components before it reaches the detector.
A related concept worth understanding is the acquisition method — how the hyperspectral data cube is built up. Most scientific-grade hyperspectral systems use a pushbroom architecture, where one spatial line and its full spectrum are captured at each moment, with the second spatial dimension built up through motion. Our article on snapshot hyperspectral cameras compares this with alternative architectures.
Step 4: Understanding the Data and How It Is Processed
The hardware captures the data, but the data itself has its own structure and workflow. Hyperspectral images are three-dimensional data cubes — two spatial dimensions and one spectral dimension — and the calibration chain that turns raw sensor signal into useful data is a key part of every hyperspectral workflow.
Our overview of hyperspectral image data covers the data layer: data cube structure, file formats, calibration from raw sensor signal to surface reflectance, and the data volumes involved in real-world acquisitions. For the analytical step that comes next — turning calibrated data into classifications, identifications, and quantitative results — see our article on hyperspectral image processing, which covers the algorithms and techniques in depth, and the broader spectral image analysis overview for analytical workflows across multispectral and hyperspectral imaging.
The software layer that supports all of this — acquisition, calibration, visualization, modeling — is covered in our hyperspectral software overview.
Step 5: Understanding the Applications
With the technical foundation in place, the next question is what hyperspectral imaging is actually used for. The answer is genuinely broad — from mining and mineral exploration through agriculture, environmental monitoring, industrial sorting, defense and surveillance, cultural heritage, and medical research.
Our hyperspectral imaging applications hub provides a structured overview of the major industry verticals where hyperspectral imaging is used, with links to dedicated articles for each. Specific deep dives include hyperspectral imaging in mining, hyperspectral imaging military applications, hyperspectral medical imaging, hyperspectral imaging in food industry, hyperspectral agriculture, and hyperspectral remote sensing systems.
For specialized application areas, our overviews of hyperspectral microscopy (close-up and high-resolution work) and hyperspectral LiDAR (combined spectral and 3D sensing) cover narrower domains in depth.
Step 6: Understanding How Systems Are Deployed
Hyperspectral imaging is deployed in different ways depending on the application. The same camera technology may be used in a laboratory, mounted on a UAV, flown on a manned aircraft, or integrated into a satellite. Each of these deployment configurations imposes different requirements on the system.
HySpex organizes its complete systems into five standard turnkey solutions:
- Laboratory Systems for controlled scanning of static scenes
- Field Systems for portable outdoor work
- Airborne Systems for manned aircraft deployment
- UAV Systems for drone-based acquisition

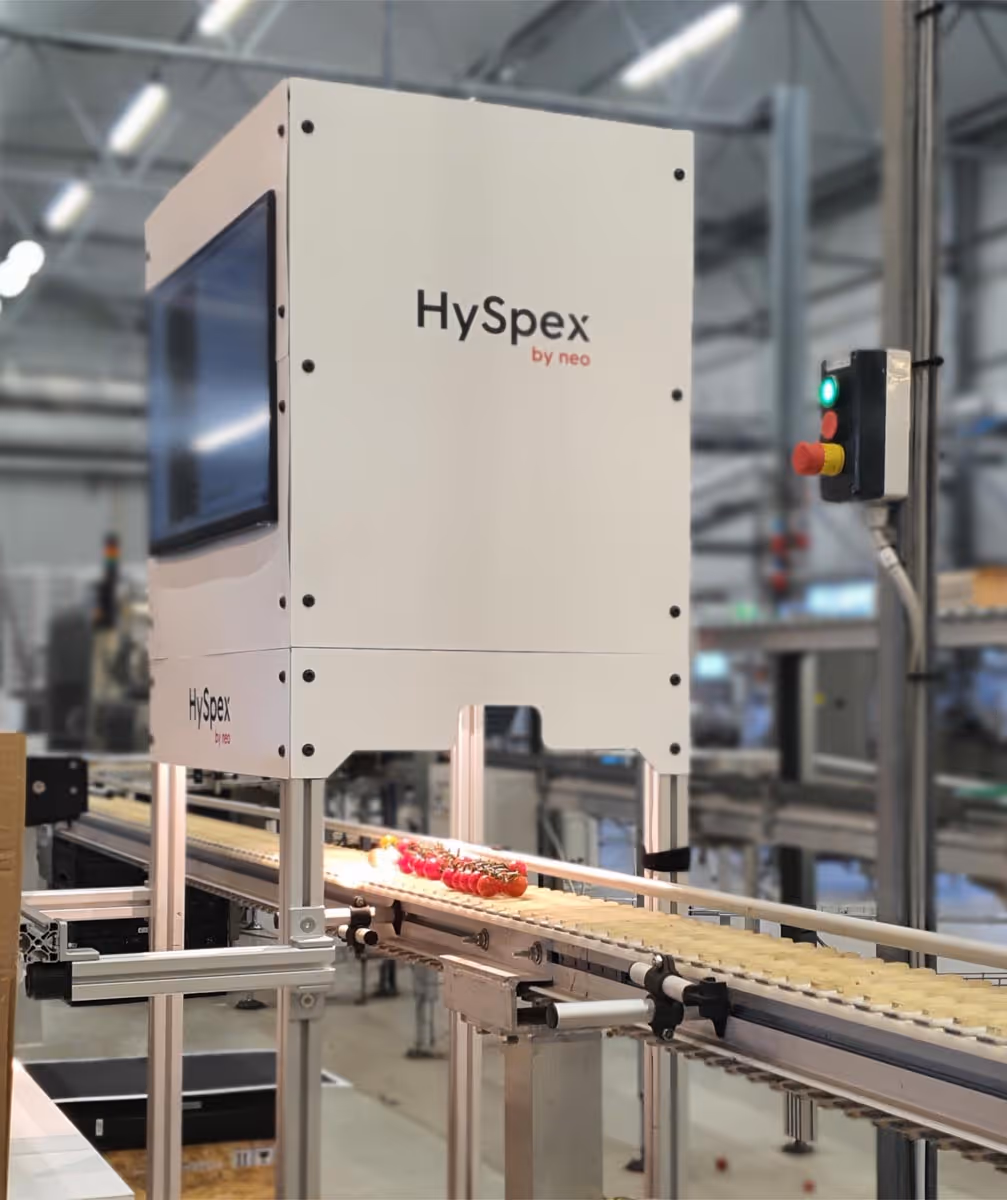

- Industrial Systems for production line integration
In addition, HySpex develops Custom Solutions for specialized applications such as drill core scanning, art conservation, and plant phenotyping, where standard configurations need adaptation.
Step 7: Understanding Quality Considerations
A consistent theme across hyperspectral imaging is that quality matters more than top-level specifications suggest. Two systems with the same number of spectral bands and the same number of pixels can deliver very different data quality depending on optical design, calibration stability, and engineering details that are not visible from a spec sheet.
The HySpex Key Quality Parameters resources explain the parameters that actually determine whether a hyperspectral system delivers useful data — including spectral fidelity, low optical distortions (smile and keystone), proper Nyquist sampling, and calibration stability. For organizations evaluating their first hyperspectral imaging system, the HySpex Buyer's Guide provides a structured framework for thinking through the trade-offs.
This is one of the most important things to absorb when entering the field. The hyperspectral imaging market is large enough that systems vary significantly in actual performance, and the differences between research-grade and consumer-grade systems are not always obvious from marketing materials.
Step 8: Understanding Cost and System Selection
For organizations approaching hyperspectral imaging seriously, cost and system selection are often the practical questions. Hyperspectral systems range from compact UAV cameras to large airborne installations to research-grade laboratory configurations, with corresponding variation in cost.
Our overview of hyperspectral imaging camera price covers the factors that influence cost across different system types. The fundamental point is that pricing reflects not just hardware but engineering depth, calibration, and long-term support — all of which matter significantly more for scientific and operational applications than for casual experimentation.
Where to Go Next
By this point, you have an overview of hyperspectral imaging that covers the technology, the data, the applications, the deployment configurations, and the considerations that go into selecting a system. The next step depends on what brings you to the topic.
If you are evaluating hyperspectral imaging for a specific application, the natural next step is to read the application-specific articles in our applications hub, then move into the more technical material on sensors, data, and system quality.
If you are building technical knowledge for research or career development, the technical deep dives — sensors, image data, image processing, and analysis — are the productive areas to invest time in.
If you are comparing hyperspectral with other technologies, the multispectral vs hyperspectral comparison and the spectral image analysis overview are good places to consolidate the comparison.
If you are preparing to select or specify a system, the quality parameters and buyer's guide are the priority reading, followed by the applications and deployment configurations that match your specific use case.
Discuss Your Hyperspectral Imaging Application
Hyperspectral imaging is broad enough that the best entry point depends heavily on your specific question. For application-focused conversations — research design, system specification, deployment planning, or evaluation of fit for a specific use case — a direct technical discussion is often the most productive starting point.
HySpex develops scientific-grade hyperspectral imaging systems for research, industrial, defense, and remote sensing applications, and supports users from initial system specification through deployment and ongoing analysis. If your work involves spectral measurement and you would like to discuss the right approach for your situation, feel free to contact us for more information.
FAQ – Introduction to Hyperspectral Imaging
What is hyperspectral imaging in the simplest terms?
Hyperspectral imaging is a technology that records a complete light spectrum at every pixel in an image, instead of just capturing color information like a normal camera. This makes it possible to identify and analyze materials based on how they interact with light across many narrow wavelength bands.
How is hyperspectral imaging different from a regular camera?
A regular camera captures three broad color channels (red, green, blue). A hyperspectral camera captures hundreds of narrow wavelength bands, often extending beyond visible light into the near-infrared and shortwave infrared. The result is not just an image of what something looks like, but a measurement of how it interacts with light across many wavelengths.
What do I need to know first when learning about hyperspectral imaging?
The most useful starting points are: (1) what hyperspectral imaging is and how it differs from ordinary imaging, (2) how it differs from multispectral imaging, and (3) what kinds of applications it supports. From there, the technical depth — sensors, cameras, data, processing — can be approached based on which aspects matter most for your specific interest.
Is hyperspectral imaging difficult to use?
For many applications, modern hyperspectral systems include integrated software that simplifies acquisition and analysis. For demanding research or quantitative measurement, deeper technical understanding is needed. The complexity scales with the application — straightforward classification tasks have lower barriers than research-grade quantitative analysis.
Where can I see examples of hyperspectral data?
HySpex maintains a publicly available sample data collection with examples from various applications, including art conservation, mining, and remote sensing. This is one of the most direct ways to develop intuition for what hyperspectral data looks like and what kinds of analysis it supports.
