The hyperspectral sensor is the component that converts incoming light into the measurable signal at the heart of every hyperspectral imaging system. Without the right detector — properly cooled, calibrated, and matched to the spectral range of interest — the rest of the imaging chain cannot deliver useful data. As a result, the hyperspectral image sensor has a direct impact on what kinds of materials can be identified, what spectral features can be resolved, and how reliable the resulting measurements are over time.
This article looks at what defines a hyperspectral sensor, the detector technologies used across visible, near-infrared, shortwave infrared, and thermal regions, and the parameters that separate a sensor that performs in laboratory specifications from one that delivers in operational use.
What Is a Hyperspectral Sensor?
A hyperspectral sensor is the detector array that records light intensity as a function of wavelength and spatial position across a scene. In a complete hyperspectral imaging system, the sensor sits inside an imaging spectrometer that disperses incoming light into its spectral components before the detector records them. The combination of optics, spectrometer, and sensor turns a scene into a structured dataset where every pixel carries a continuous spectrum.
The term is used in slightly different ways depending on context. Sometimes "hyperspectral sensor" refers to the detector array specifically; sometimes it describes the full sensor head including optics and spectrometer. In both cases, the underlying detector technology shapes the system's overall capability.
Sensor vs Camera: A Distinction That Matters
The terms hyperspectral sensor, hyperspectral image sensor, and hyperspectral camera are often used interchangeably, but they refer to slightly different things in technical discussion.
A hyperspectral image sensor is the imaging detector array — the two-dimensional silicon, InGaAs, or MCT device that converts photons into electrical signal. A hyperspectral sensor typically includes that detector plus the spectrometer and fore optics that select and disperse light. A hyperspectral camera is the full integrated unit — sensor head, electronics, mechanical housing, and interfaces — that a user deploys in the field or laboratory. Our overview of hyperspectral cameras and imagery covers the camera-level perspective in more depth, while this article focuses on the sensor and detector layer.
The distinction matters because sensor characteristics — detector material, cooling, read noise, well capacity — set the floor on what the rest of the system can achieve.
Detector Technologies Across Spectral Ranges
Different parts of the optical spectrum require fundamentally different detector technologies. No single sensor material covers everything from visible light through the thermal infrared with adequate sensitivity and noise performance, so hyperspectral systems are typically built around the detector that best matches the wavelength range of interest.
VNIR Detectors — Scientific CMOS
In the visible and near-infrared region (roughly 400–1000 nm), hyperspectral sensors typically use scientific CMOS (sCMOS) detectors. These detectors offer high quantum efficiency across the visible spectrum, low read noise, fast frame rates, and well-controlled dynamic range. Modern sCMOS sensors used in scientific hyperspectral cameras are often actively cooled and thermally stabilized to keep dark current low and ensure that calibration remains stable across long acquisitions.
The HySpex VNIR-1800 uses an actively cooled, stabilized scientific CMOS detector with a dynamic range of around 20 000 and peak SNR exceeding 255 at full resolution. The VNIR-3000 N uses a CMOS sensor with a smaller pixel pitch (3.45 micrometers compared to 6.5 micrometers in the VNIR-1800), enabling 3000 spatial pixels and 300 spectral bands across the same 400–1000 nm range. The two cameras represent different design philosophies — sharper optics per pixel versus more pixels across a wider field — but both rely on the same VNIR detector technology.
SWIR Detectors — InGaAs and MCT
In the shortwave infrared (roughly 1000–2500 nm), two detector technologies dominate: InGaAs (indium gallium arsenide) and MCT (mercury cadmium telluride, also known as HgCdTe). The choice between them has significant implications for sensor performance.
InGaAs detectors are well suited to wavelengths up to approximately 1.7 micrometers, are relatively low cost, and can operate with thermoelectric cooling. They are common in compact and UAV-class SWIR hyperspectral cameras where size, weight, and power constraints matter.
MCT detectors can be tuned to cover much longer wavelengths — well beyond 2.5 micrometers — and typically offer higher signal-to-noise ratio and broader spectral coverage than InGaAs across the full SWIR range. The trade-off is that MCT detectors require significantly more aggressive cooling, typically to cryogenic temperatures using Stirling coolers, which adds size, weight, power consumption, and cost.
HySpex uses MCT detectors for its full-performance SWIR cameras, cooled to 150K using Stirling coolers. The SWIR-384 (950–2500 nm) and SWIR-640 (960–2500 nm) both use this approach, with high dynamic range and exceptional SNR. The choice is deliberate: applications such as mineral mapping, where critical absorption features sit in the 2000–2500 nm region, depend on the broader spectral coverage and stronger signal that MCT delivers. This connects directly to our discussion of hyperspectral imaging in mining, where SWIR performance often determines whether key clay, mica, and carbonate minerals can be identified at all.

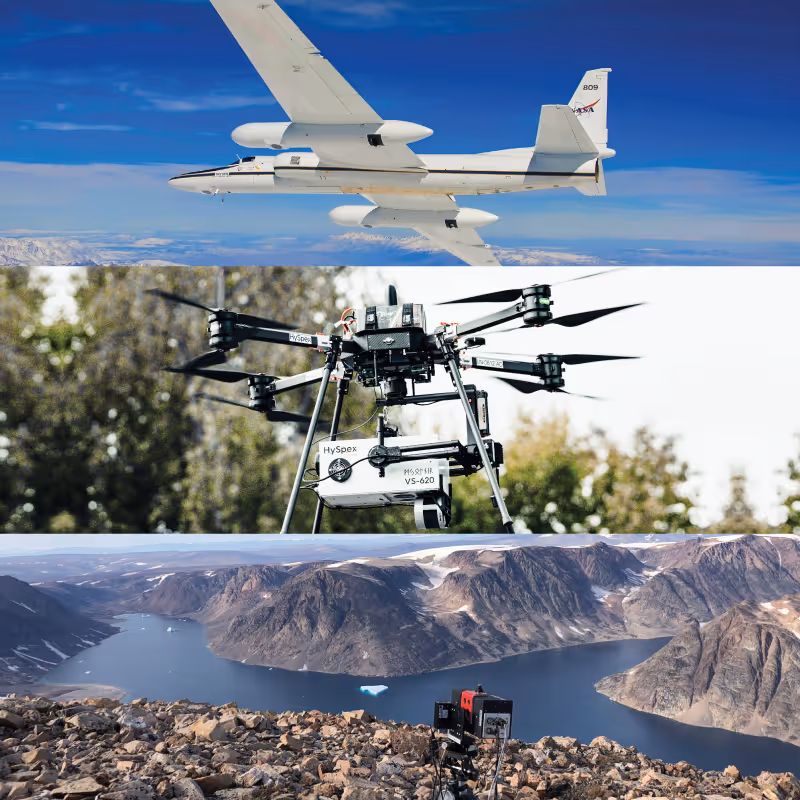

For compact UAV deployment, where MCT cooling is impractical, the HySpex Mjolnir series uses different sensor architectures suited to the platform constraints — a reminder that detector choice is always a trade-off between performance, size, and operating conditions.
MWIR and LWIR Detectors
Beyond the SWIR range, the mid-wave and long-wave infrared (MWIR roughly 3–5 micrometers, LWIR roughly 8–14 micrometers) require yet other detector technologies — typically photovoltaic or photoconductive detectors based on materials such as MCT, indium antimonide (InSb), or microbolometer arrays. These wavelengths are particularly relevant for silicate mineral identification, thermal emissivity studies, and gas plume detection.
HySpex's recent partnership with Telops on the State of Alaska core scanning system extends spectral coverage to 12 500 nm by combining HySpex VNIR/SWIR cameras with Telops MWIR/LWIR cameras — an example of how multiple detector technologies are integrated to cover the full mineralogical spectrum.
Key Hyperspectral Sensor Parameters
Beyond the detector material, several technical parameters define how well a hyperspectral sensor performs in practice.
Spatial pixels determines how many points along the imaging line the sensor can resolve. HySpex VNIR cameras range from 1240 to 3000 spatial pixels, and SWIR cameras from 384 to 640, with the choice depending on the field of view and resolution required.
Spectral channels is the number of contiguous wavelength bands the sensor records. HySpex Classic SWIR cameras typically deliver 288 to 362 spectral channels across the 950–2500 nm range (with slight variation between models); VNIR cameras can range from 200 to over 400 channels depending on the binning mode.
Bit resolution (typically 12 to 16 bits) defines how finely the sensor digitizes intensity differences. Higher bit depth captures more subtle variations in the signal — important when dim spectral features need to be distinguished from background.
Noise floor (measured in electrons, often expressed as e⁻) sets the lower limit for what the sensor can detect. A VNIR-1800 noise floor of around 2.6 e⁻ at full resolution is what enables the camera to maintain useful SNR in dark scenes; a Baldur SWIR camera's higher noise floor reflects its different design optimization for fast industrial acquisitions.
Dynamic range is the ratio between the strongest signal the sensor can record without saturation and the noise floor. Higher dynamic range means the sensor can image bright and dim regions of the same scene without losing information at either end.
Gain modes extend a sensor's practical dynamic range across different scene conditions. Several HySpex SWIR cameras — including the SWIR-384, SWIR-640, Mjolnir S-620, and the Baldur SWIR series — offer selectable High Gain and Low Gain modes (and in the case of the Baldur S-640i N, an intermediate Mid Gain). High Gain prioritizes sensitivity for darker scenes at the cost of a smaller dynamic range, while Low Gain accommodates brighter scenes with reduced noise sensitivity but higher saturation thresholds. The ability to switch between modes lets the same instrument handle very different acquisition scenarios without compromise — useful when a single camera needs to cover everything from low-reflectance shadowed surfaces to bright illuminated material.
Peak signal-to-noise ratio (SNR) combines several of the above parameters into a single performance number. SNR matters because subtle spectral features in real materials are often only a few percent variation against background — a sensor with low SNR will lose them in noise.
Maximum frame rate matters for moving platforms and industrial conveyor applications. A sensor that nominally has high resolution but cannot deliver it at operational frame rates is not actually useful in those settings.
Data interface determines how acquired data is transferred from the camera to the acquisition computer. HySpex Classic cameras typically use Camera Link for the sustained high data rates that scientific acquisitions demand, while the VNIR-3000 N uses USB 3.0 for simpler integration with standard computing platforms. The choice of interface affects both the supporting hardware required and the workflows the system can fit into.
Cooling and Stability
Detector cooling is not optional in scientific-grade hyperspectral systems. Even small temperature changes can shift dark current, alter detector response, and degrade calibration. The level of cooling required depends on the detector material — VNIR sCMOS sensors can often operate with thermoelectric cooling, while MCT detectors typically need cryogenic cooling, often via Stirling coolers that hold the focal plane at 150K or lower.
Beyond cooling, thermal stability of the entire optical system matters. A sensor that drifts under field temperature changes will produce data that cannot be reliably compared across acquisitions. This is why HySpex emphasizes calibration stability and traceability to NIST and PTB standards across its product range — including the Baldur industrial cameras, which are explicitly designed for repeatable operation in production environments where calibration drift would directly affect product quality decisions. Baldur cameras also share a useful property for long-term industrial deployment: all cameras within the same wavelength range have identical center wavelengths, meaning data acquired from one Baldur instrument can be directly compared with data from another without recalibrating models or reworking spectral libraries. For production environments where instruments are replaced or upgraded over time, this kind of consistency is what makes long-term analytical infrastructure possible.
The HySpex Approach to Sensor Selection
HySpex's product range illustrates how sensor selection is matched to application requirements rather than driven by a single architectural preference.
For VNIR scientific work, sCMOS detectors with active cooling and stabilization deliver the SNR and calibration stability needed for quantitative analysis. The choice between the VNIR-1800 and VNIR-3000 N then reflects different design philosophies — sharper optics with fewer pixels versus more pixels with slightly relaxed PSF sampling — but both rely on the same fundamental detector technology.
For demanding SWIR applications, MCT detectors cooled to 150K deliver the spectral coverage and SNR needed to identify subtle mineralogical, chemical, and material features. The SWIR-384 and SWIR-640 both follow this approach.
For compact UAV and field deployment, the Mjolnir series uses sensor architectures suited to size and power constraints — necessarily accepting some performance trade-offs relative to the Classic series but maintaining scientific-grade data quality within those constraints.
For industrial production environments, the Baldur series uses Nyquist-sampled sensor designs that capture roughly four times more light than the Classic series per acquisition, with calibration traceable to NIST and PTB. The design priorities here are speed, robustness, and repeatability — slightly different from the priorities driving Classic series sensor choices. The Baldur V-1024 N also offers an unusual degree of flexibility for industrial users: the camera is configurable within one octave inside the 400–1000 nm range, meaning the same hardware can be deployed for different spectral coverage modes (typically 410–780 nm, 493–945 nm, or 408–996 nm) depending on the application — a useful property when an industrial deployment needs to be tuned to specific material signatures without changing instruments.
Across all of these, the choice of pushbroom architecture rather than snapshot acquisition means each sensor element is used efficiently — dedicated to capturing one spatial line and its full spectrum rather than splitting the detector area to encode multiple dimensions of the data cube simultaneously.
Beyond the Sensor — System-Level Quality
A hyperspectral image sensor is necessary but not sufficient for a useful hyperspectral system. Even the best detector cannot compensate for poor optical design, unstable calibration, or inadequate processing software. The factors detailed in the HySpex Key Quality Parameters resources — smile, keystone, point spread function, Nyquist sampling, spectral fidelity, and signal-to-noise ratio at the system level — all influence whether the data the sensor records can actually be used for the intended application.
For organizations evaluating hyperspectral imaging systems, looking at sensor specifications in isolation can be misleading. A higher pixel count or a wider nominal spectral range does not automatically translate into better data if the rest of the optical chain cannot deliver. This is one reason HySpex publishes detailed Buyer's Guide material that goes beyond headline sensor specifications.
Hyperspectral Sensors as the Foundation of the Imaging Chain
The hyperspectral sensor sits at the foundation of every hyperspectral imaging system, and the detector technology behind it shapes what the rest of the chain can achieve. From scientific CMOS detectors for VNIR work, through MCT for demanding SWIR applications, to specialized detectors for industrial and compact deployment, the right sensor is the one matched to the wavelengths, signal levels, and operating conditions of the intended application.
The most useful question to ask of a hyperspectral system is not "what sensor does it use" in isolation, but "is this sensor — combined with its cooling, optics, and calibration — capable of delivering the data my application requires?" That broader question is what serious instrument selection and procurement comes down to.
Discuss Hyperspectral Sensor Requirements for Your Application
Selecting a hyperspectral sensor for a specific application involves trade-offs between spectral range, signal-to-noise ratio, cooling requirements, platform constraints, and long-term calibration stability. The right choice depends as much on the operational environment as on the materials and spectral features of interest.
HySpex develops scientific-grade hyperspectral imaging systems built around carefully selected sensor and detector technologies — from sCMOS for VNIR work to MCT for demanding SWIR applications. If your work involves hyperspectral measurement where sensor performance matters, a technical discussion about your specific application is often the best starting point. Feel free to contact us for more information.
FAQ – Hyperspectral Sensors
What is a hyperspectral sensor?
A hyperspectral sensor is the detector and associated optical components that record light intensity as a function of wavelength and spatial position. It typically combines a two-dimensional detector array with an imaging spectrometer, producing a per-pixel spectrum across the scene. The sensor sits at the heart of a complete hyperspectral imaging system.
What is the difference between a hyperspectral sensor and a hyperspectral image sensor?
The terms are often used interchangeably, but a hyperspectral image sensor usually refers specifically to the detector array itself, while a hyperspectral sensor can describe the broader sensor head including optics and spectrometer. In practical discussion, both terms point to the same general technology layer.
What detector technologies are used in hyperspectral sensors?
Scientific CMOS (sCMOS) detectors are typical for the visible and near-infrared (VNIR) range. Shortwave infrared (SWIR) hyperspectral sensors use either InGaAs detectors, common in compact and lower-cost systems, or MCT (mercury cadmium telluride) detectors, which offer broader spectral coverage and higher signal-to-noise ratio at the cost of more demanding cryogenic cooling. Mid-wave and long-wave infrared bands use other photovoltaic, photoconductive, or microbolometer technologies.
Why is detector cooling important in hyperspectral imaging?
Detector cooling reduces thermal noise (dark current) and stabilizes detector response, allowing the sensor to detect subtle spectral features that would otherwise be lost in noise. Scientific VNIR sensors are typically thermoelectrically cooled and stabilized, while MCT SWIR sensors usually require cryogenic cooling — often via Stirling coolers holding the focal plane at 150K or lower.
How do hyperspectral sensor specifications affect data quality?
Spatial pixel count, spectral channel count, bit resolution, noise floor, dynamic range, peak signal-to-noise ratio, and frame rate all contribute to the quality and usability of the data. But sensor specifications alone do not determine system performance — optical design, calibration stability, and processing software also play critical roles in turning raw sensor signal into reliable spectral data.
