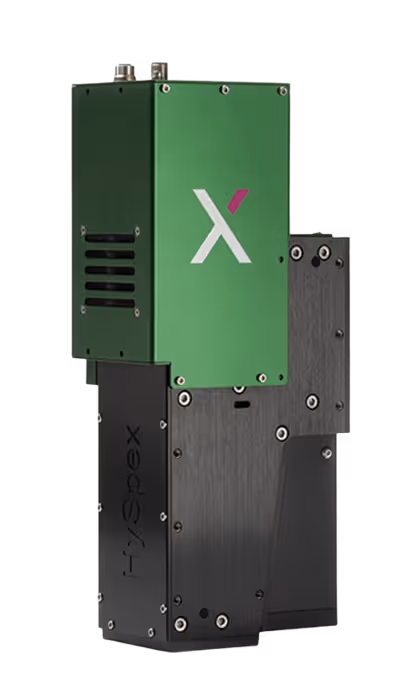

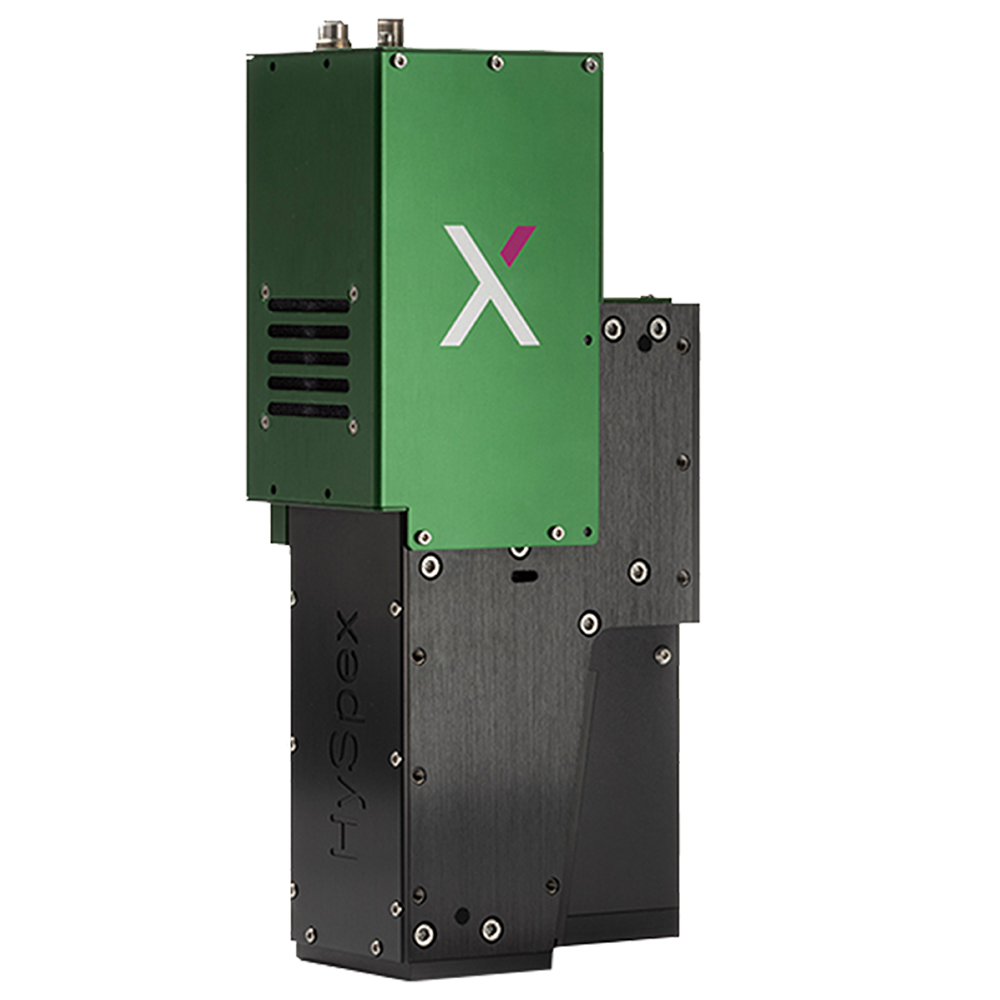

HySpex Baldur S-640i N
Baldur S-640i N covers the spectral range from 950-1730nm.
All Baldur cameras are Nyquist cameras giving a spectral resolution of 2 spectral bands while capturing 4 times as much light as the classic systems. To ensure that the most information per framerate is provided, the spectral resolution is kept very close to 2 bands. Additionally, the spatial resolution of Baldur S-640i N is better than 1.5 pixels, yielding a very sharp camera.
HySpex Baldur S-640i N configuration
Baldur for Industrial Applications
Designed to be fast, flexible, robust and repeatable, HySpex offers the Baldur line of industrial cameras.
Baldur benefits
- Flexibility: All Baldur cameras support multiple regions of interest (MOI).
- Trigger: All camera can be triggered internally, and all cameras support several kinds external triggering.
All cameras are operating in Integrate While Read (IWR) mode. - Speed: Maximized information per data rate of any hyperspectral camera. Speed scalable with reducing
the number of spectral channel read-out. - Reliability and traceability:
All cameras delivered with traceable calibration to NIST and PTB standards.
All cameras within the same wavelength range have the same center wavelengths.
Well-proven and robust design. - Light sensitivity: High speed acquisitions with light sensitivity 4 times higher than HySpex classic.
- SDK: All HySpex cameras (Baldur, Classic and Mjolnir) are delivered with a high-end SDK and library
that makes it simple to integrate the HySpex HW into any third-party software and hardware solution. - Fully integrated hardware and software solution
Main specifications
Specification
HG
MG
LG
Spectral range
970–1670 nm
Spectral bands
208
Max. speed*
560 fps
Spectral sampling
3.41 nm
Spectral FWHM
< 2 bands
Spatial FWHM
< 1.5 pixels
Spatial pixels
640
F-number
f/2
FOV
16.7° / 32.2°
Bit resolution
12 bit
Noise floor
8.5 e-
32 e-
270 e-
Peak SNR
>150
>275
>800
Dynamic range
2650
2360
2360
ROI*
Pairs of bands can be selected/deselected individually
External trigger options
LVDS, 3.3V / 5V TTL
Dimensions (l–w–h)
364 × 105 × 153 mm
*Reducing the number of spectral channels with ROI will proportionally increase the max framerate
On-scene scan speed for various foreoptics options
Foreoptics type
Working distance from camera to object
Field of view
Pixel size
Max Speed*
Max Speed**
Microscope
27,4 mm
6.9° / 20,9 mm
0.033 mm
0.02 m/s
0.04 m/s
30cm
204,8 mm
18.5° / 103.7mm
0.162 mm
0.09 m/s
0.18 m/s
1.0m
888,3 mm
17.4° / 309.4 mm
0.483 mm
0.27 m/s
0.54 m/s
44cm / 40°
428,3 mm
39.9° / 325.3 mm
0.551 mm
0.31 m/s
0.62 m/s
1.0m / 40°
989,8 mm
41.9° / 801 mm
1.252 mm
0.70 m/s
1.40 m/s
1.9m / 40°
1844,3 mm
41.9° / 1453.3 mm
2.271 mm
1.27 m/s
2.54 m/s
* With 208 bands and square pixels
** With 72 bands and square pixels
** With 72 bands and square pixels
Lens options
Working distance
1.0 m
1.0 m
1.9 m
Field of View
16°/282 mm
40°/704 mm
40°/1344 mm
Pixel size
0.44 mm
1.10 mm
2.10 mm
Max speed (232 bands*)
0.22 m/s
0.55 m/s
1.05 m/s
Max speed (116 bands*)
0.40 m/s
1.10 m/s
4.20 m/s
*Reducing the number of spectral channels with ROI will proportionally increase the max framerate.
