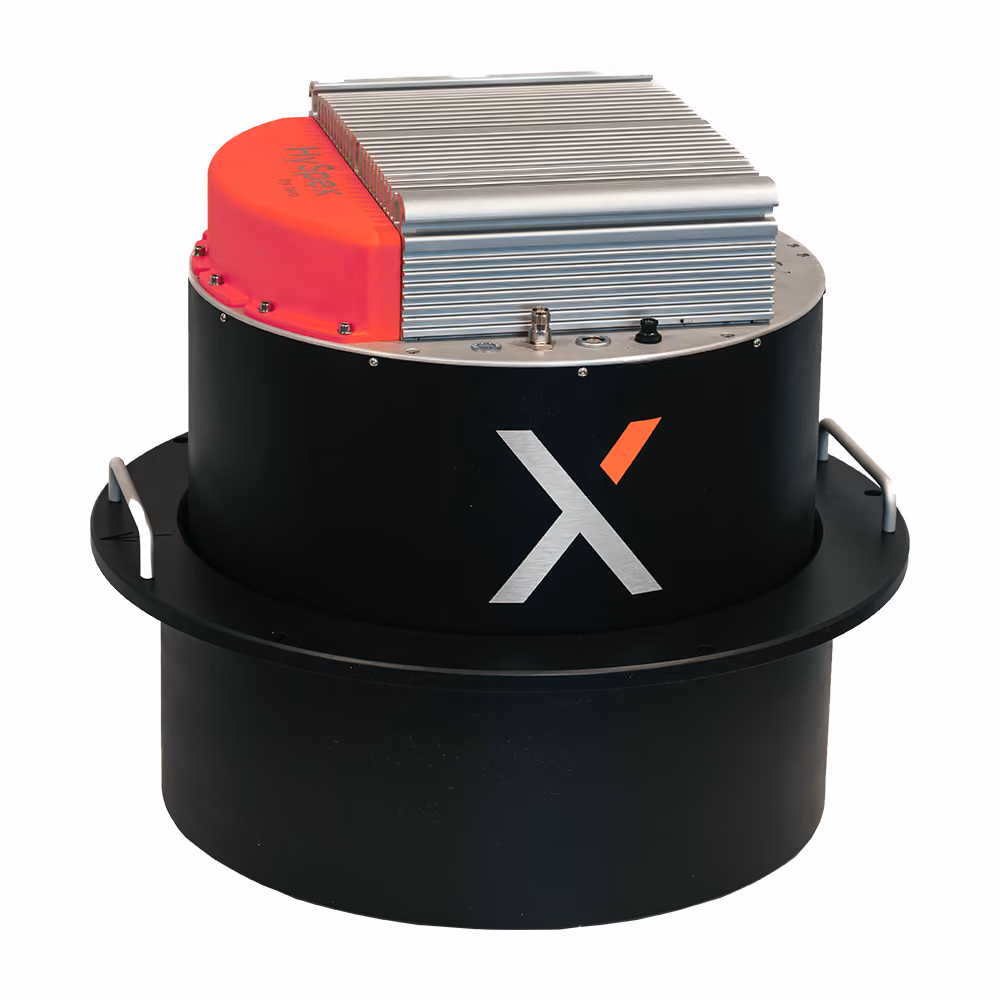

HySpex VS-1200
The HySpex VS-1200 is a novel high-resolution instrument designed for airborne applications at altitudes greater than 400m.
The camera produces the highest scientific grade level data, commercially available, having FWHM less than 1.2 pixels spatially and less than 1.5 pixels spectrally. The combined VNIR-SWIR cube has coregistration errors, and smile and keystone of less than 10% of a pixel.
With 40 degrees FOV, the camera is ideal for mapping large areas with high accuracy and resolution.
The camera is delivered with an integrated high-performance IMU/GPS and data acquisition unit with removable storage bays as a standard. Existing navigation systems can also be integrated/utilized.
A standard passive damping solution is included as a part of the default delivery package, but mounting plates for active damping solutions, such as GSM4000 or PAV80 can be supplied.
HySpex VS-1200
Main Specifications
Airborne Applications
High resolution and high speed, combined with low weight and power consumption, make NEO’s HySpex cameras very well suited for airborne data acquisition.
Position- and attitude logging systems (IMU/GPS) from leading manufacturers can be integrated and supplied with the cameras. Alternatively, the HySpex systems can be interfaced with the customer’s existing navigational hardware.
For airborne systems, NEO supplies dedicated software and a touch screen for ease of operation.
