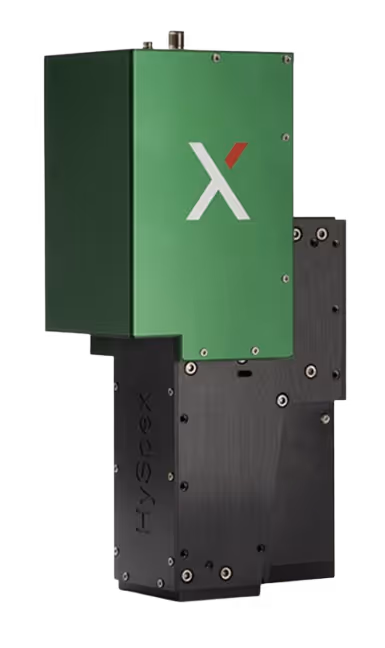

HySpex Baldur S-384 N
Baldur S-384 N covers the spectral range from 960-2500 nm.
All Baldur cameras are Nyquist cameras giving a spectral resolution of 2 spectral bands while capturing 4 times as much light as the classic systems. To ensure that the most information per framerate is provided, the spectral resolution is kept very close to 2 bands. Additionally, the spatial resolution of Baldur S-384 N is better than 1.5 pixels, yielding a very sharp camera.

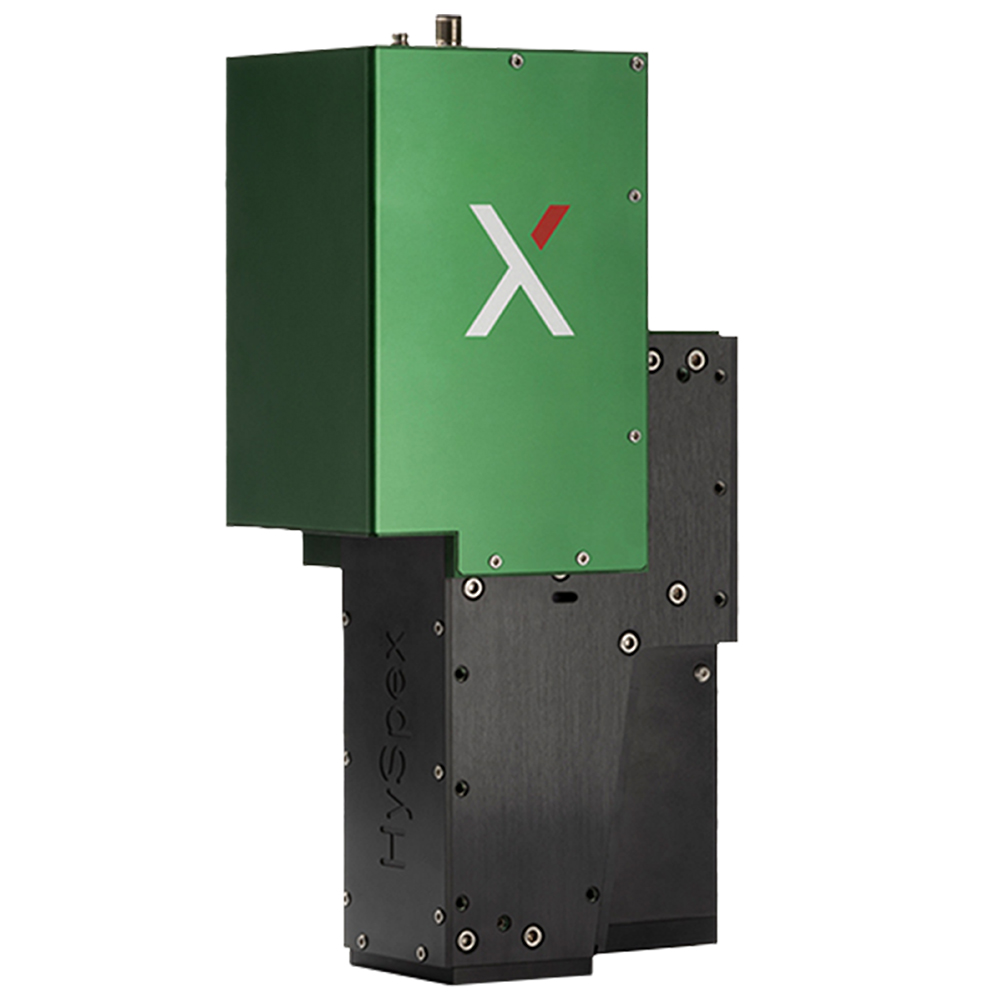

HySpex Baldur S-384 N configuration
Baldur for Industrial Applications
Designed to be fast, flexible, robust and repeatable, HySpex offers the Baldur line of industrial cameras.
Baldur benefits
- Flexibility: All Baldur cameras support multiple regions of interest (MOI).
- Trigger: All camera can be triggered internally, and all cameras support several kinds external triggering.
All cameras are operating in Integrate While Read (IWR) mode. - Speed: Maximized information per data rate of any hyperspectral camera. Speed scalable with reducing
the number of spectral channel read-out. - Reliability and traceability:
All cameras delivered with traceable calibration to NIST and PTB standards.
All cameras within the same wavelength range have the same center wavelengths.
Well-proven and robust design. - Light sensitivity: High speed acquisitions with light sensitivity 4 times higher than HySpex classic.
- SDK: All HySpex cameras (Baldur, Classic and Mjolnir) are delivered with a high-end SDK and library
that makes it simple to integrate the HySpex HW into any third-party software and hardware solution. - Fully integrated hardware and software solution
Main specifications
Specification
Spectral range
960–2500 nm
Spectral bands
288
Max. speed*
395 fps
Spectral sampling
5.45 nm
Spectral FWHM
< 2 bands
Spatial FWHM
< 1.3 pixels
Spatial pixels
384
F-number
f/2
FOV
16.1° / 30.8°
Bit resolution
16 bit
Noise floor
LG: 250 e- | HG: 150 e-
Peak SNR
LG: 5200 | HG: 2800
Dynamic range
LG: >1100 | HG: >640
ROI*
All bands can be selected/deselected individually
External trigger options
LVDS, 3.3V / 5V TTL
Dimensions (l–w–h)
368 × 131 × 175 mm
*Reducing the number of spectral channels with ROI will proportionally increase the max framerate.
On-scene scan speed for various foreoptics options
Foreoptics type
Working distance from camera to object
Field of view
Pixel size
Max Speed*
Max Speed**
Microscope
27,4 mm
6.6° / 20,1 mm
0.052 mm
0.02 m/s
0.04 m/s
30cm
204,8 mm
17.8° / 99.5mm
0.259 mm
0.10 m/s
0.20 m/s
1.0m
888,3 mm
16.7° / 296.9 mm
0.773 mm
0.30 m/s
0.61 m/s
44cm / 40°
428,3 mm
38.1° / 335.1 mm
0.873 mm
0.34 m/s
0.69 m/s
1.0m / 40°
989,8 mm
40° / 761.8 mm
1.984 mm
0.78 m/s
1.57 m/s
1.9m / 40°
1844,3 mm
40° / 1382.7 mm
3.601 mm
1.42 m/s
2.84 m/s
* With 288 bands and square pixels
** With 144 bands and square pixels
** With 144 bands and square pixels
Lens options
Working distance
1.0 m
1.0 m
1.9 m
Field of View
16°/280 mm
40°/699 mm
40°/1344 mm
Pixel size
0.73 mm
1.82 mm
3.50 mm
Max speed (200 bands*)
0.42 m/s
1.05 m/s
2.02 m/s
Max speed (100 bands*)
0.84 m/s
2.10 m/s
4.03 m/s
*Reducing the number of spectral channels with ROI will proportionally increase the max framerate.
