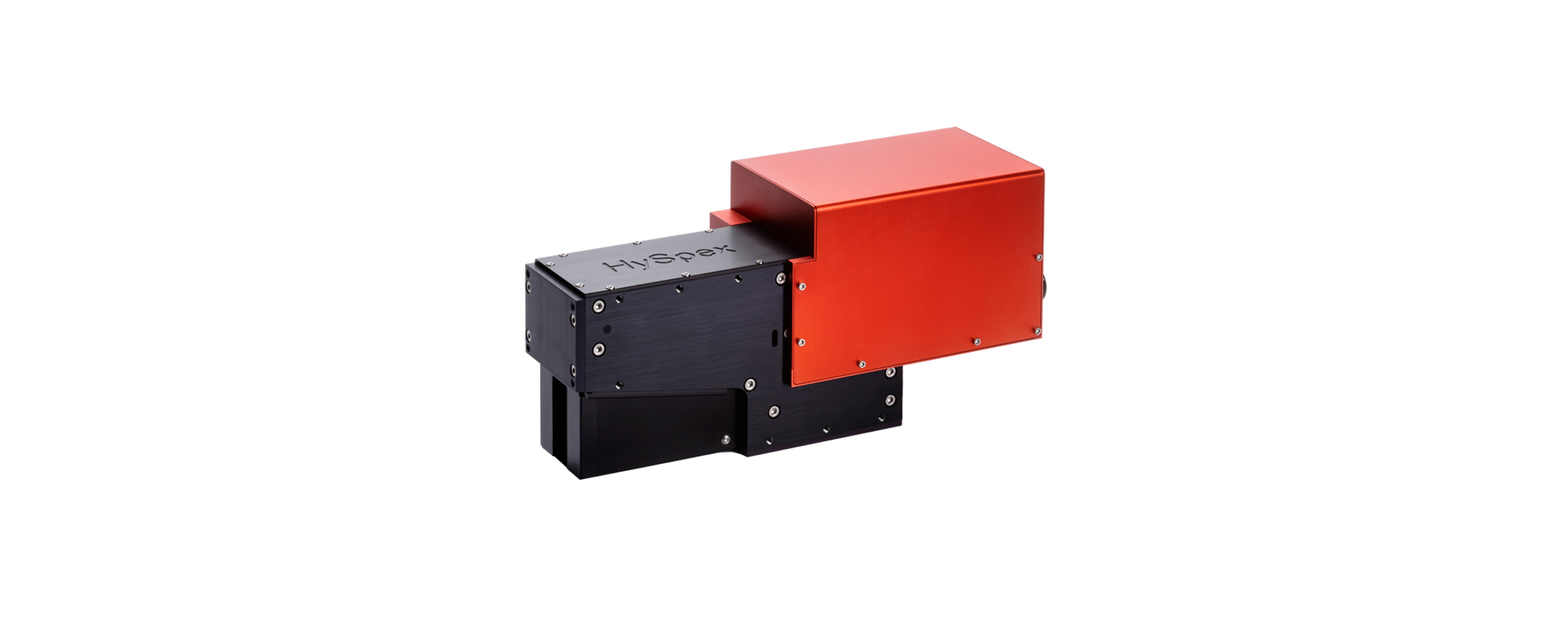

HySpex SWIR-384

The HySpex SWIR-384 hyperspectral camera is developed for field, laboratory, and airborne applications.

The state of the art MCT sensor with cooling down to 150K yields low background noise, high dynamic range, and exceptional SNR levels. With a max frame rate of 400 fps, combined with an aberration-corrected optical system with high optical throughput (f/2), the data quality, speed, and sensitivity is truly state of the art.

A wide range of close-up lenses allows the use of the camera at working distances ranging from a few centimeters with a spatial resolution of 53 μm to infinity e.g. airborne remote sensing.

HySpex Classic SWIR-384 configuration

For lab and field use, a scanning stage is needed to scan the cameras and build the hyperspectral data cube of the scene. A user-friendly table-top lab setup with translation stage, VNIR-SWIR light sources, and close-up lenses can also be supplied for scanning of samples of varying sizes. The scanning speed is automatically controlled by the data acquisition unit, based on the selected lens option. The lab rack includes a camera adjustment platform, to facilitate camera focus adjustment when using different close-up lenses.

Accressories

For field operations, NEO supplies a range of high precision rotation stages tailored to fit the specific operational scenario. Long-life Li-ion battery powered solutions are available for increased portability. To ensure stable and reliable acquisitions in challenging field conditions, rugged and portable tripods are supplied. NEO supplies a variety of tripods with pan/tilt heads that will accommodate the camera payload and rotation stage used.

High resolution and high speed, combined with low weight and power consumption, make HySpex cameras very well suited for airborne data acquisition. A typical airborne installation consists of the HySpex cameras coupled with an airborne data acquisition unit, a navigation system (IMU/GPS) and a mount- ing platform. Both actively stabilized and passive- ly damped mounting platforms can be supplied, as well as standard mounting plates with no damping. IMU/GPS solutions from leading manufacturers can be supplied and integrated with the cameras. Alternatively, HySpex systems can be interfaced with the customer’s existing navigational hardware.

Spectral range  930-2500 nm
Spatial pixels  384
Spectral channels  288
Spectral sampling  5.45 nm
FOV*  16°
Pixel FOV across/along*  0.73/0.73 mrad
Bit resolution  16 bit
Noise floor  150 e-
Dynamic range  7500
Peak SNR (at full resolution)  > 1100
Max speed (at full resolution)  400 fps
Power consumption  30 W
Dimensions (l–w–h)  38 – 12– 17.5 cm
Weight  5.7 kg
Camera Interface  CameraLink

*Can be doubled with FOV expander
