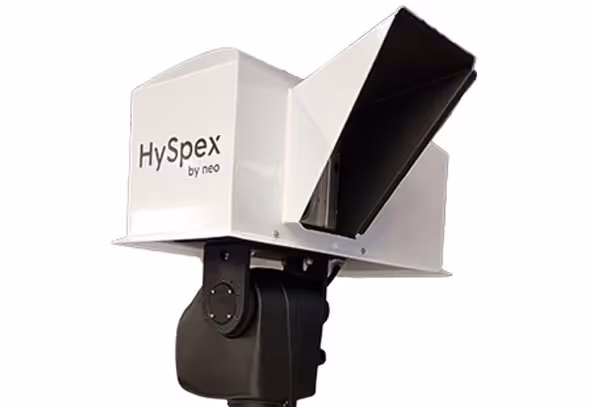

HySpex Mjolnir IP65
The IP version of Mjolnir VS-620 was designed for unattended operations in exposed environments.

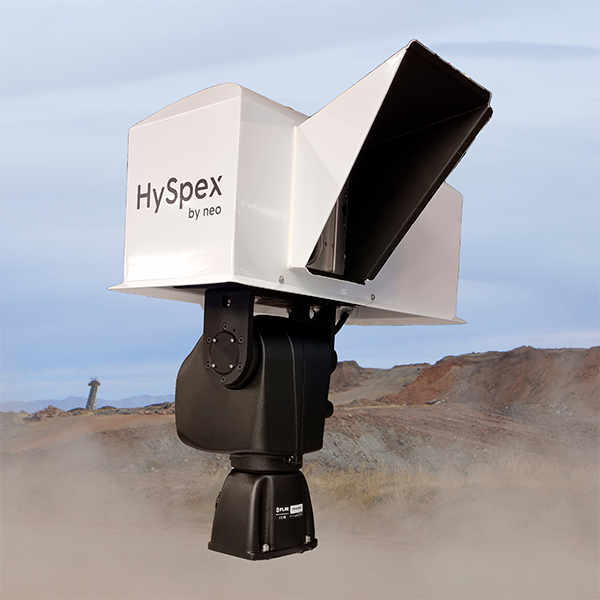

The IP65 version of Mjolnir VS-620 is designed specifically for environmental monitoring where the camera is installed in an exposed and unattended remote location for continuous operation over extended periods of time. The camera is mounted on an IP67-graded FLIR pan/tilt head.
HySpex Mjolnir VS-620 IP65 configuration
Main Specifications
| V-1240 | S-620 | |
| Combined spectral range | 400 – 2500 | |
| Spatial pixels | 1240 | 620 |
| Combined spatial pixels | 620 | |
| Spectral channels and sampling | 200 bands @ 3.0 nm | 300 bands @ 5.1 nm |
| Combined spectral channels | 490 | |
| F-number | F1.8 | F1.9 |
| FOV | 20° | 20° |
| Combined FOV | 20° | |
| Pixel FOV across/along | 0.27/0.54 mrad | 0.54/0.54 mrad |
| Combined Pixel FOV across/along | 0.54/0.54 mrad | |
| Bit resolution (raw data) | 12 bit | 16 bit |
| Noise floor | 2.3 e- | 80 e- |
| Dynamic range | 4400 | 10000 |
| Peak SNR (at full resolution) | > 180 | > 900 |
| Max speed (at full resolution) | 200 fps | 100 fps |
| Power consumption | 50 W | |
| Dimensions (l–w–h) | 374 – 202 – 178 mm | |
| Weight | ~ 6 kg | |
