Rotation Stages

To accommodate various usage scenarios, HySpex offers a selection of rotation stages.

All rotation stages are configured in the HySpex GROUND software, where all camera parameters are set. This ensures that the rotation speed is synchronized with the camera frame rate and field of view.

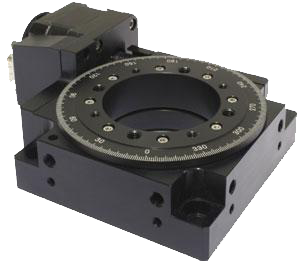

Standard Rotation Stage

The rotation stage can accommodate up to two cameras at the same time, when positioned horizontally. The standard rotation stage can be powered directly for the battery powered Field DAUs, and is normally coupled with the standard tripod.

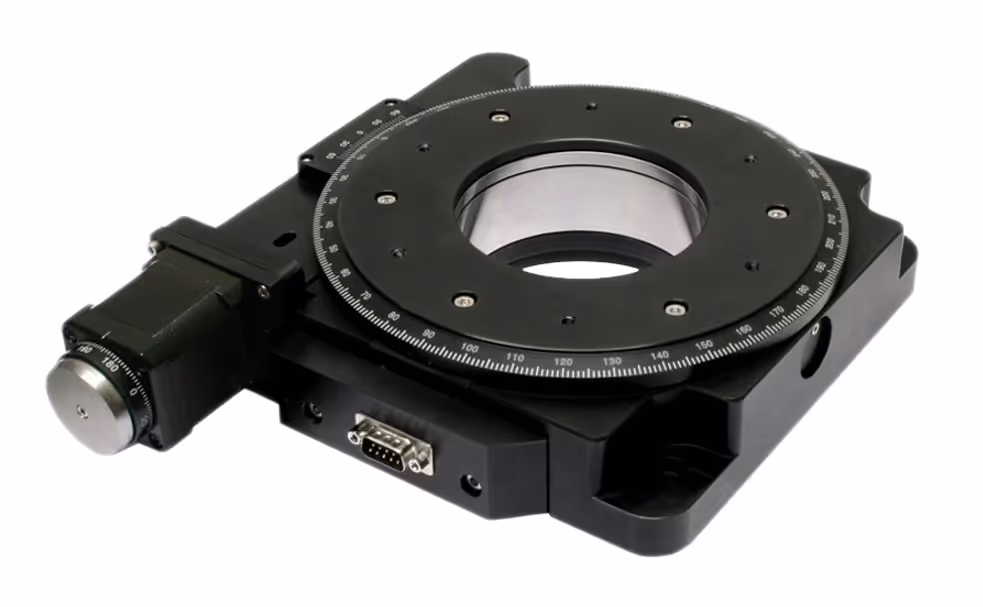

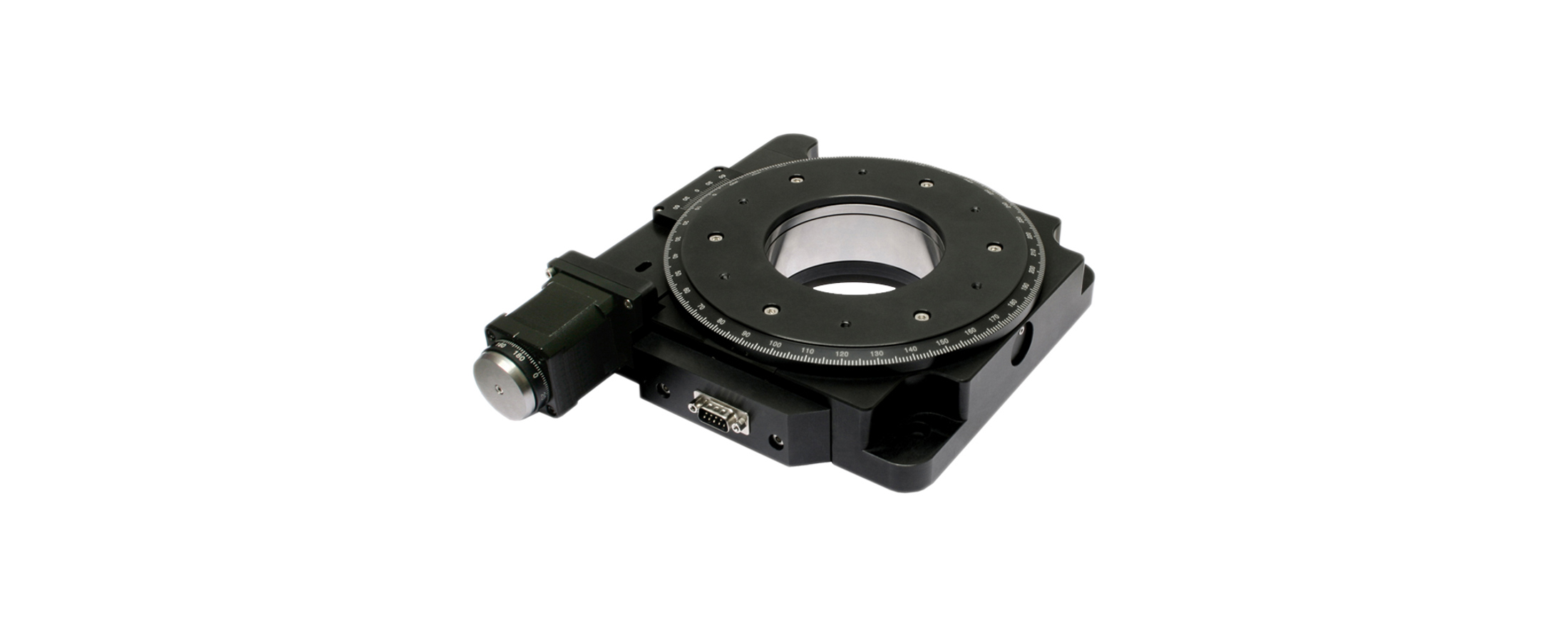

High capacity rotation stage

The high capacity rotation stage can accommodate up to two cameras at the same time. With a vertical load capacity of more than 20 kg, the rotation stage is capable of supporting both cameras vertically.

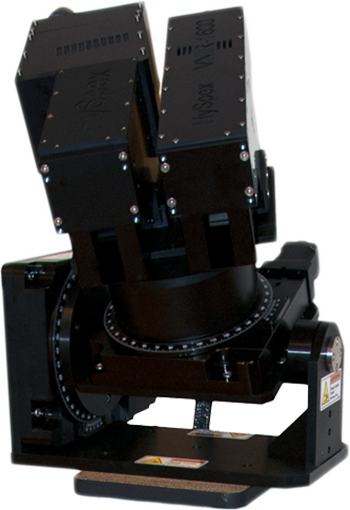

XY rotation stage

For automatic scanning of larger areas with great accuracy, the automatic pan/tilt stage is recommended. By inputting the number of degrees/scan lines to scan in both the X and Y direction, the stage will automatically scan the cameras, ensuring overlap between scan lines.
