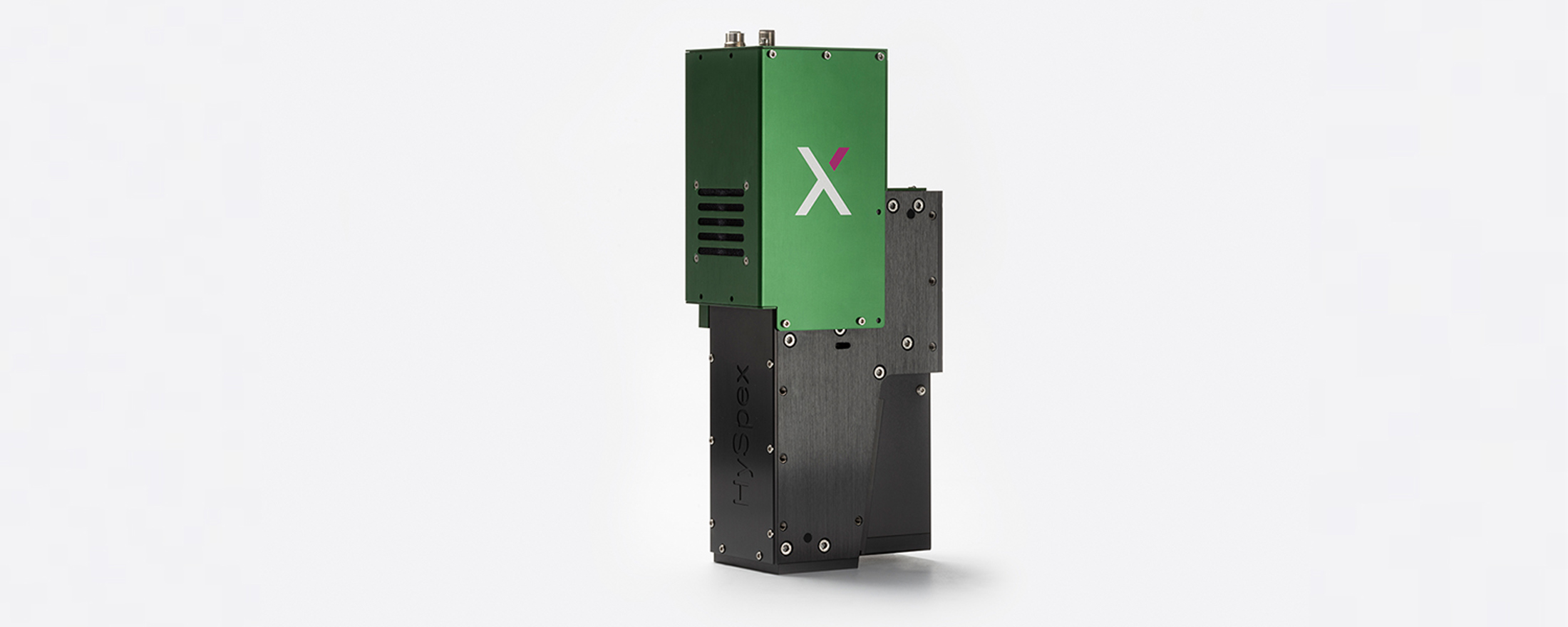

HySpex Baldur S-640i N

Baldur S-640i N covers the spectral range from 950-1730nm.

All Baldur cameras are Nyquist cameras giving a spectral resolution of 2 spectral bands while capturing 4 times as much light as the classic systems. To ensure that the most information per framerate is provided, the spectral resolution is kept very close to 2 bands. Additionally, the spatial resolution of Baldur S-640i N is better than 1.5 pixels, yielding a very sharp camera.

HySpex Baldur S-640i N configuration

Designed to be fast, flexible, robust and repeatable, HySpex offers the Baldur line of industrial cameras.

Baldur benefits

  • Flexibility: All Baldur cameras support multiple regions of interest (MOI).
  • Trigger: All camera can be triggered internally, and all cameras support several kinds external triggering.
    All cameras are operating in Integrate While Read (IWR) mode.
  • Speed: Maximized information per data rate of any hyperspectral camera. Speed scalable with reducing
    the number of spectral channel read-out.
  • Reliability and traceability:
    All cameras delivered with traceable calibration to NIST and PTB standards.
    All cameras within the same wavelength range have the same center wavelengths.
    Well-proven and robust design.
  • Light sensitivity: High speed acquisitions with light sensitivity 4 times higher than HySpex classic.
  • SDK: All HySpex cameras (Baldur, Classic and Mjolnir) are delivered with a high-end SDK and library
    that makes it simple to integrate the HySpex HW into any third-party software and hardware solution.
  • Fully integrated hardware and software solution

Spectral Range  960-1675 nm
Spectral bands  208
Max speed*  500 fps
Spectral sampling  3.36 nm
Spectral FWHM  <2 bands
Spatial FWHM  <1.5 pixels
Spatial pixels  640
Keystone  <20% of a pixel
Smile  <20% of band
FOV  16° / 40°
Bit resolution  12 bit
Noise floor  HG:8.5/MG:32/LG:270 e-
Peak SNR  HG:150/MG:275/LG:800
Dynamic range  HG:2650/MG:2360/LG:2360
ROI*  All bands can be selected/deselected individually
External trigger options  LVDS, 5V/12V/24V TTL
Dimensions (l-w-h)  364 – 105 – 153 mm
Camera Interface  GigE

* Reducing the number of spectral channels with ROI will proportionally increase the max framerate

Working distance Field of View  Pixel size  Max speed (232 bands*)  Max speed (116 bands*)
1.0 m  16°/282 mm  0.44 mm  0.22 m/s  0.40 m/s
1.0 m  40°/704 mm  1.10 mm  0.55 m/s  1.10 m/s
1.9 m  40°/1344 mm  2.10 mm  1.05 m/s  4.20 m/s

* Reducing the number of spectral channels with ROI will proportionally increase the max framerate
