Airborne hyperspectral systems extend hyperspectral imaging from static laboratory and field settings into wide-area aerial surveying. By mounting hyperspectral cameras on manned aircraft — fixed-wing or rotary — these systems support large-scale mapping, environmental monitoring, geological exploration, and scientific research at coverage rates that no ground-based deployment can match. They are also among the most demanding hyperspectral configurations to engineer, integrate, and operate.
This article looks at how airborne hyperspectral systems are designed and deployed, what is required to maintain data quality across a flight, how the navigation and processing chains work, and how the airborne configuration relates to UAV and ground-based alternatives. It is written for users evaluating airborne hyperspectral capability — whether for a new survey program, a research deployment, or operational integration into existing aerial work.
What Defines an Airborne Hyperspectral System
An airborne hyperspectral system is a complete hyperspectral imaging platform integrated for installation on a manned aircraft. The core hyperspectral camera does not change fundamentally from its ground-based counterpart — it is the surrounding hardware, integration, and operational workflow that distinguish airborne deployment from other configurations.
The defining characteristics include high-quality navigation integration for georeferencing acquired imagery, vibration-damped mounting to protect optical alignment in flight, robust acquisition computing capable of handling sustained high data rates, and operational software designed for flight-line acquisition. Atmospheric correction and geometric correction are essential parts of the data processing chain, because airborne acquisitions look through significant atmosphere and across changing geometry.
Most scientific-grade airborne hyperspectral systems are based on pushbroom acquisition architectures. As the aircraft moves along its flight line, the sensor records successive lines of the scene below, with each line containing the full spectral measurement for its spatial pixels. The aircraft motion provides the second spatial dimension, and the result is a hyperspectral data cube covering the swath beneath the flight path.
The HySpex Airborne Systems turnkey configuration is built around this architecture, using cameras from the HySpex Classic series — particularly the HySpex VS-1200, which combines VNIR and SWIR imaging in a single 35 kg airborne package, along with VNIR-1800, SWIR-384, and SWIR-640 standalone systems for applications focused on a single spectral range. The VS-1200 illustrates the kind of quality that scientific-grade airborne instruments are engineered for: less than 1.2 pixels FWHM spatially and less than 1.5 pixels FWHM spectrally, with combined VNIR-SWIR coregistration errors and smile and keystone of less than 10% of a pixel. Numbers like these are what distinguish a research-grade airborne instrument from a casual one, and they shape what analytical workflows the data can support.
Components of an Airborne Hyperspectral System
The integrated nature of airborne hyperspectral deployment means that several distinct subsystems must work together.
The hyperspectral camera itself is the optical and spectral measurement core. For airborne deployment, the camera needs sufficient sensitivity to handle the relatively short integration times that aircraft motion imposes, sufficient calibration stability to maintain data quality across multi-hour flights, and physical robustness to operate reliably in airborne conditions.
The navigation system — typically an inertial measurement unit (IMU) combined with GPS — records the aircraft's position and attitude during acquisition. Without high-quality navigation data, the spectral lines acquired during flight cannot be properly georeferenced into a usable hyperspectral data product. Modern airborne systems often use survey-grade IMU/GPS units with carrier-phase GPS processing for the position accuracy that georeferencing requires. HySpex UAV configurations, for example, integrate the Applanix APX-15/20 navigation system, which provides 100 Hz real-time position and attitude output with IMU data at 200 Hz across 336 satellite channels (GPS, GLONASS, BeiDou, Galileo, QZSS, and SBAS) — the level of multi-constellation coverage that supports reliable direct georeferencing in operational conditions.
The acquisition computer captures and stores the high data rates produced by hyperspectral acquisition. A typical airborne flight may produce several hundred gigabytes of raw data per hour, requiring robust storage and reliable real-time data handling. HySpex airborne configurations use high-performance rack computers with touchscreen acquisition software designed for in-flight operation.
The mounting hardware physically attaches the hyperspectral camera to the aircraft and isolates it from vibration. Vibration-damped mounts are essential — even small high-frequency vibrations can blur acquired lines and degrade spectral fidelity. HySpex airborne configurations include a passive damping solution as standard, with mounting plates available for active gyro-stabilized platforms such as the GSM4000 and PAV80 — industry-standard active damping systems that compensate for aircraft motion in real time and are widely used in scientific airborne survey operations.
The calibration accessories include both factory calibration data that ships with the system and tools for verifying or refining calibration in operational settings. Reference panels, dark current calibration mechanisms, and traceable calibration documentation are standard parts of scientific-grade airborne configurations.
Maintaining Data Quality in Flight
The challenge of airborne hyperspectral acquisition is that the environment is operationally demanding compared to laboratory or field work. Three factors particularly affect data quality in flight.
Vibration can blur spectral measurements if the camera moves significantly during a line integration. Properly engineered vibration-damped mounts isolate the imaging system from aircraft vibration in the frequency ranges that matter — typically tens to hundreds of Hertz from engine and airflow. The mount itself becomes part of the optical design.
Atmospheric variability changes what the sensor actually sees at the surface. The same surface material reflects differently to a sensor at flight altitude depending on atmospheric conditions, sun angle, and viewing geometry. This is why airborne hyperspectral workflows almost always include atmospheric correction as a non-negotiable step.
Thermal variation can affect optical alignment and detector behavior across a multi-hour flight, particularly for systems flying through different altitudes or in non-temperature-controlled environments. Scientific-grade systems are designed to minimize thermal sensitivity and to provide enough calibration stability that data acquired in different parts of a flight remains comparable.
The combination of these factors is why scientific-grade airborne hyperspectral systems are built around the same calibration and engineering disciplines as the most demanding laboratory instruments. The downstream analytical value of the data depends entirely on how well the system maintained its measurement integrity in flight.
Navigation Integration and Georeferencing
For airborne hyperspectral data to be useful, it must be tied to ground coordinates. This is where navigation integration becomes critical.
The IMU records aircraft attitude — pitch, roll, and heading — at high rates during acquisition, typically hundreds of times per second. The GPS records aircraft position. Together they describe the aircraft's pose at every moment of acquisition, which is what allows the acquired hyperspectral lines to be projected onto a digital elevation model and assembled into a properly georeferenced data product.
The PARGE software, supplied by HySpex's partner ReSe Applications, performs this geometric rectification. It combines the raw hyperspectral image with the navigation data and a digital elevation model to produce orthorectified hyperspectral imagery. Our PARGE overview covers this workflow in more depth.
Without proper navigation integration and geometric correction, an airborne hyperspectral acquisition is a beautiful but unusable data product. The data may have excellent spectral fidelity, but if the analyst cannot place each pixel on the ground accurately, the spectral information cannot be tied to the geographical features it represents.
Atmospheric Correction in the Airborne Workflow
The other half of turning airborne hyperspectral data into something analyzable is atmospheric correction. Light reaching the sensor at flight altitude has passed through hundreds to thousands of meters of atmosphere, depending on flight altitude. That atmosphere absorbs and scatters light in wavelength-dependent ways, modifying the apparent spectral signature of every pixel.

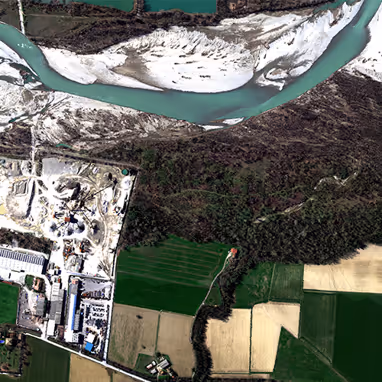

ATCOR-4 is the atmospheric correction tool developed by DLR (German Aerospace Center) and distributed by HySpex's partner ReSe Applications, integrated into the HySpex airborne workflow. It applies a physics-based model — using MODTRAN-5 radiative transfer with up to 8-stream DISORT scattering — to estimate and remove the atmospheric contribution from each pixel, leaving an estimate of surface reflectance that can be used for analysis. Our ATCOR-4 overview covers the model and its inputs.
The atmospheric correction workflow requires inputs that go beyond the hyperspectral data itself: aerosol optical depth, water vapor content, sun position, viewing geometry, and elevation. Some of these are recorded during flight (sun position, viewing geometry from navigation); others are estimated from the data itself or from ground-based measurements. The quality of the final reflectance product depends on the quality of these atmospheric inputs as much as on the imaging system.
Flight Planning and Operational Workflow
A successful airborne hyperspectral mission depends on flight planning that accounts for the constraints of the technology. Several considerations particularly affect outcome.
Solar geometry — the sun's position relative to the flight line — affects illumination and shadowing across the acquired imagery. Flights are typically planned for solar elevation angles that minimize shadow effects, often around solar noon for mid-latitude work, with awareness of seasonal variation.
Atmospheric conditions — visibility, humidity, cloud cover — affect both the data quality and the feasibility of atmospheric correction. Clear, dry, low-haze conditions produce the best data. Cloud shadows on the surface or partial cloud cover at flight altitude can render acquired data unusable.
Flight altitude and ground speed determine the relationship between spatial resolution and swath width. Higher altitudes give wider coverage but coarser spatial resolution and longer atmospheric paths. Lower altitudes provide finer detail but narrower coverage and require more flight lines for the same area.
Overlap between adjacent flight lines allows for radiometric matching between strips and supports quality verification. Most operational programs plan for 30% to 50% overlap, depending on the analytical workflow.
The HySpex airborne software supports these operational considerations through integrated mission planning, in-flight monitoring, and acquisition control. The goal is to produce uniformly good data across the survey area rather than to maximize any single specification.
Airborne, UAV, and Satellite — How They Relate
Airborne hyperspectral acquisition fits into a broader landscape of aerial spectral observation. Manned aircraft remain the workhorse for scientific surveys, environmental monitoring, and large-area mapping where extended flight time, payload capacity, and the operational maturity of crewed aircraft are advantages. UAV-based hyperspectral systems — built around platforms such as the HySpex Mjolnir series — extend hyperspectral capability to smaller areas with greater operational flexibility, lower cost per deployment, and the ability to fly closer to the surface for higher spatial resolution. UAV-class instruments such as the Mjolnir VS-620 deliver scientific-grade data quality despite their compact form factor — smile and keystone of less than 0.1 pixels for each spectral range, and combined VNIR-SWIR coregistration better than 0.2 pixels across the full 400–2500 nm range. Satellite hyperspectral systems offer global access and revisit but at coarser resolution and with different operational constraints.
In many operational programs, these are complementary rather than competing. Satellite imagery may provide broad coverage and initial reconnaissance; airborne surveys may follow up over areas of interest with higher resolution and better spectral fidelity; UAV deployments may target the most detailed work on specific sites. The integration of these tiers — and the consistent calibration across them — is part of what makes hyperspectral remote sensing operationally powerful.
HySpex develops systems for all three tiers, with shared calibration approaches that support consistent analysis across the platforms. Our overview of hyperspectral remote sensing systems covers the broader remote sensing landscape; the airborne configuration covered in this article is one part of that broader picture.
Applications of Airborne Hyperspectral Systems
The applications of airborne hyperspectral imaging span scientific, commercial, and operational domains.
In mineral exploration, airborne hyperspectral surveys map large prospect areas for mineralogical features that indicate ore deposits, alteration zones, and lithological boundaries. Programs cover thousands of square kilometers at spatial resolutions of a few meters, with subsequent ground follow-up targeted at the most promising areas.
In environmental monitoring, airborne hyperspectral data supports vegetation health assessment, ecosystem change detection, water quality analysis, and methane emissions monitoring. The combination of broad coverage and spectral detail allows quantitative measurements of environmental properties that ground sampling cannot achieve at scale.
In forestry and agriculture, airborne surveys provide species classification, biomass estimation, stress mapping, and yield assessment across large landscapes. Multi-temporal acquisitions over the same area support change detection and seasonal monitoring.
In scientific research, airborne hyperspectral data supports investigations into atmospheric physics, ecosystem dynamics, geological processes, and methodology development for satellite missions. HySpex airborne systems have flown on platforms ranging from small light aircraft to large research aircraft to stratospheric platforms — most notably the recent Sceye stratospheric platform deployments.
In defense and ISR, airborne hyperspectral systems support target detection, change monitoring, and anomaly detection over wide areas. The same technology that supports mineral exploration also supports the detection of materials in defense contexts.
The Engineering Heritage Behind Airborne Hyperspectral
Scientific-grade airborne hyperspectral systems represent a particular combination of optical engineering, sensor technology, calibration discipline, and integration expertise. HySpex traces this engineering heritage back to research collaboration with the Norwegian Defence Research Establishment (FFI) in the 1980s, and through space-related instrumentation work in the 1990s including the HISS project for ESA in 1995. The hyperspectral product line has been in continuous production since 2003.
This continuity matters operationally. Long-running airborne survey programs depend on consistent calibration across years of work, on the ability to compare data acquired with different but related instruments, and on the availability of calibration services and support over multi-year deployment cycles. The HySpex track record — none of its hyperspectral products have reached end of life — is part of what users build long-term airborne capability around.
For applications outside standard turnkey configurations, HySpex has also developed bespoke airborne systems including dedicated Mjolnir OEM configurations for ISR platforms and the recent satellite hyperspectral methane detection camera developed through ESA's InCubed program.
Discuss Airborne Hyperspectral Capability for Your Application
Designing and deploying an effective airborne hyperspectral system depends on the application requirements, the survey area characteristics, the analytical workflow, and the operational and platform constraints. From sensor selection through mounting, navigation integration, atmospheric and geometric processing, and downstream analysis, the engineering decisions compound across the workflow.
HySpex develops complete airborne hyperspectral configurations supporting research, environmental monitoring, mineral exploration, scientific aviation, and operational programs. If your project involves new airborne hyperspectral capability or integration with existing aerial survey infrastructure, a technical discussion about your specific requirements is often the best starting point. Feel free to contact us for more information.
FAQ – Airborne Hyperspectral Systems
What is an airborne hyperspectral system?
An airborne hyperspectral system is a complete hyperspectral imaging platform integrated for installation on a manned aircraft. It includes the hyperspectral camera, navigation system (IMU/GPS), acquisition computer, vibration-damped mounting hardware, calibration components, and the operational software needed for flight-line acquisition.
How is airborne hyperspectral data georeferenced?
Airborne hyperspectral data is georeferenced by combining the raw imagery with high-rate navigation data (aircraft position from GPS and attitude from IMU) and a digital elevation model. The PARGE software performs this geometric rectification, producing orthorectified hyperspectral imagery that can be analyzed in geographic coordinates.
Why is atmospheric correction important for airborne hyperspectral data?
Light reaching the sensor at flight altitude has passed through significant atmosphere, which absorbs and scatters light in wavelength-dependent ways. Atmospheric correction — typically using ATCOR-4 with MODTRAN-5 radiative transfer modeling — removes this atmospheric contribution to recover an estimate of surface reflectance suitable for material identification and quantitative analysis.
How do airborne hyperspectral systems differ from UAV systems?
Manned airborne systems typically carry larger and heavier hyperspectral instruments with broader spectral range and finer spectral resolution, supported by survey-grade navigation and extended flight time. UAV-based systems prioritize compact form factor and operational flexibility, with systems such as the HySpex Mjolnir series providing scientific-grade data in packages designed for drone platforms. The two configurations complement each other in many operational programs.
What spatial resolution do airborne hyperspectral systems achieve?
Spatial resolution depends on flight altitude, sensor pixel size, and lens choice, typically ranging from less than a meter for low-altitude work to several meters for higher-altitude wide-area surveys. The relationship between altitude, swath width, and resolution is one of the key flight planning considerations for any airborne hyperspectral program.
